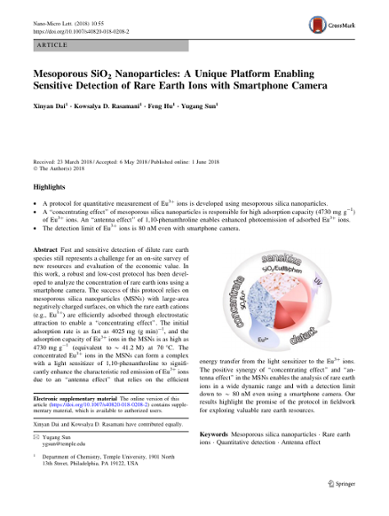

Mesoporous SiO2 Nanoparticles: A Unique Platform Enabling Sensitive Detection of Rare Earth Ions with Smartphone Camera
Dai, X Rasamani, KD Hu, F Sun, Y
Dai, X
Rasamani, KD
Hu, F
Sun, Y
Citations
Altmetric:
Genre
Journal Article
Date
2018-12-01
Advisor
Committee member
Group
Department
Permanent link to this record
Collections
Research Projects
Organizational Units
Journal Issue
DOI
10.1007/s40820-018-0208-2
Abstract
© 2018, The Author(s). Fast and sensitive detection of dilute rare earth species still represents a challenge for an on-site survey of new resources and evaluation of the economic value. In this work, a robust and low-cost protocol has been developed to analyze the concentration of rare earth ions using a smartphone camera. The success of this protocol relies on mesoporous silica nanoparticles (MSNs) with large-area negatively charged surfaces, on which the rare earth cations (e.g., Eu3+) are efficiently adsorbed through electrostatic attraction to enable a “concentrating effect”. The initial adsorption rate is as fast as 4025 mg (g min)−1, and the adsorption capacity of Eu3+ ions in the MSNs is as high as 4730 mg g−1 (equivalent to ~ 41.2 M) at 70 °C. The concentrated Eu3+ ions in the MSNs can form a complex with a light sensitizer of 1,10-phenanthroline to significantly enhance the characteristic red emission of Eu3+ ions due to an “antenna effect” that relies on the efficient energy transfer from the light sensitizer to the Eu3+ ions. The positive synergy of “concentrating effect” and “antenna effect” in the MSNs enables the analysis of rare earth ions in a wide dynamic range and with a detection limit down to ~ 80 nM even using a smartphone camera. Our results highlight the promise of the protocol in fieldwork for exploring valuable rare earth resources.[Figure not available: see fulltext.].
Description
Citation
Citation to related work
Springer Science and Business Media LLC
Has part
Nano-Micro Letters
