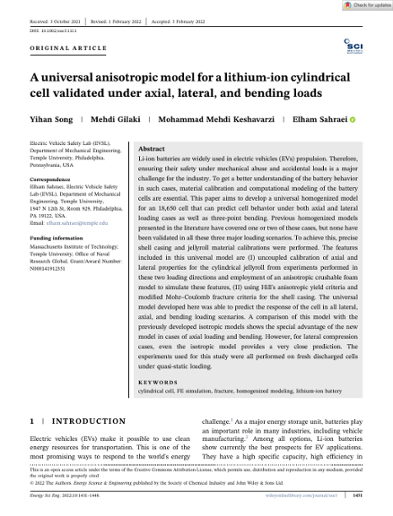

A universal anisotropic model for a lithium-ion cylindrical cell validated under axial, lateral, and bending loads
Song, Yihan Gilaki, Mehdi Sahraei, Elham
Song, Yihan
Gilaki, Mehdi
Sahraei, Elham
Citations
Altmetric:
Genre
Journal article
Date
2022-03-13
Advisor
Committee member
Department
Mechanical Engineering
Permanent link to this record
Collections
Research Projects
Organizational Units
Journal Issue
DOI
http://dx.doi.org/10.1002/ese3.1111
Abstract
Li-ion batteries are widely used in electric vehicles (EVs) propulsion. Therefore, ensuring their safety under mechanical abuse and accidental loads is a major challenge for the industry. To get a better understanding of the battery behavior in such cases, material calibration and computational modeling of the battery cells are essential. This paper aims to develop a universal homogenized model for an 18,650 cell that can predict cell behavior under both axial and lateral loading cases as well as three-point bending. Previous homogenized models presented in the literature have covered one or two of these cases, but none have been validated in all these three major loading scenarios. To achieve this, precise shell casing and jellyroll material calibrations were performed. The features included in this universal model are (I) uncoupled calibration of axial and lateral properties for the cylindrical jellyroll from experiments performed in these two loading directions and employment of an anisotropic crushable foam model to simulate these features, (II) using Hill's anisotropic yield criteria and modified Mohr–Coulomb fracture criteria for the shell casing. The universal model developed here was able to predict the response of the cell in all lateral, axial, and bending loading scenarios. A comparison of this model with the previously developed isotropic models shows the special advantage of the new model in cases of axial loading and bending. However, for lateral compression cases, even the isotropic model provides a very close prediction. The experiments used for this study were all performed on fresh discharged cells under quasi-static loading.
Description
Citation
Song, Y, Gilaki, M, Keshavarzi, MM, Sahraei, E. A universal anisotropic model for a lithium-ion cylindrical cell validated under axial, lateral, and bending loads. Energy Sci Eng. 2022; 10: 1431-1448. doi:10.1002/ese3.1111
Citation to related work
Wiley Open Access
Has part
Energy Science & Engineering, Vol. 10, Iss. 4
